About Agriculture UAV

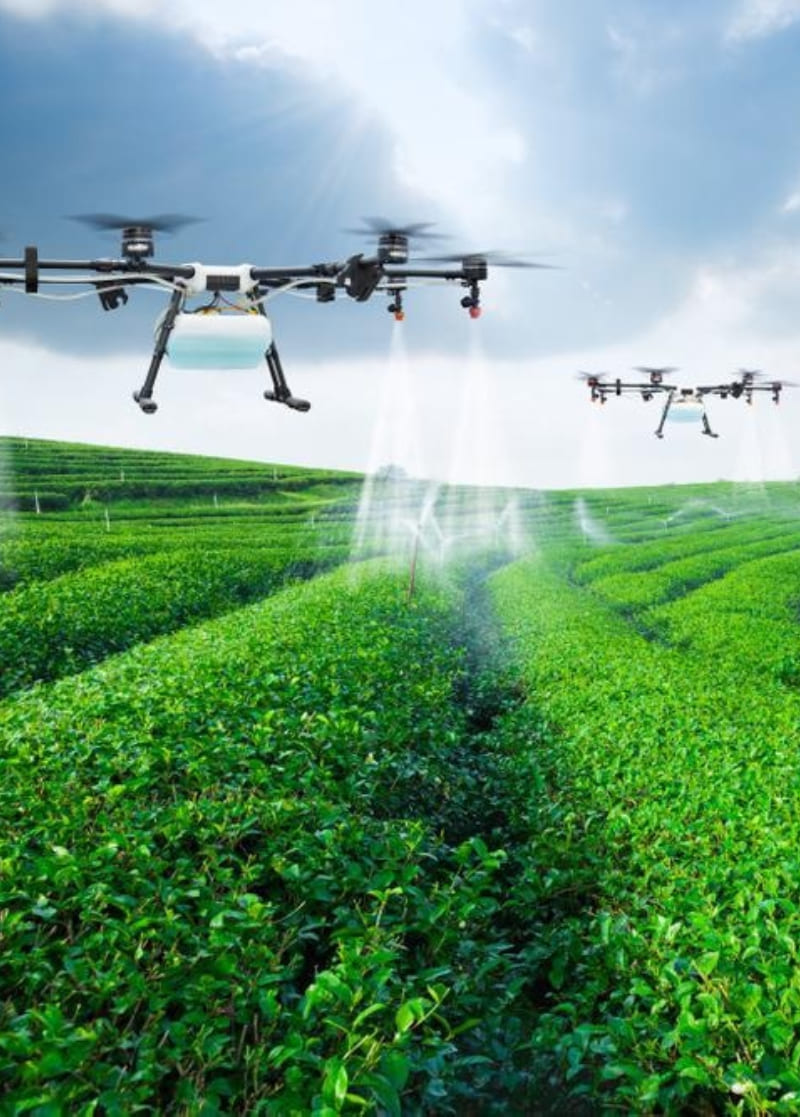

The AGRO-SERIES M1 is a cutting-edge agricultural drone designed to make farming tasks more efficient and precise. This hexa-copter drone has a sturdy yet lightweight frame made from durable carbon fiber, making it easy to handle and transport. Its 10-liter tank can carry liquids for spraying pesticides, fertilizers, or even water for crops.

How Agricultural Drones Are Used

With a flight time of 15–25 minutes and a maximum speed of 8 meters per second, the drone is ideal for covering fields quickly. It sprays across a width of 4–6 meters, with adjustable flow rates to match different needs. The drone operates at an altitude of 1–5 meters for optimal spraying performance, ensuring uniform coverage thanks to its advanced nozzles and electric diaphragm pump.

The drone runs on a high-capacity lithium-polymer battery, which supports fast charging and provides reliable power. For navigation, it uses GPS and Real-Time Kinematic (RTK) technology, enabling precision flight, even in complex fields. It has multiple flight modes, including manual, semi-automatic, and fully automatic options with waypoint navigation. Additionally, sensors on the front and back help avoid obstacles, ensuring safe operation.



Why Agricultural Drones Are Important

At Victory Ev India, we’re dedicated to crafting top-notch products and being one of the best E rickshaw manufacturer In India. As the manufacturers of electric E Rickshaw at the best price in India, we are committed to ensuring exceptional service and standing by our customers at every step. Plus, we’re proud to contribute to a greener, cleaner environment.

TECHNICAL SPECIFICATIONS

1. ) General Overview

  • Type: Agricultural Drone (Hexa-copter)
  • Frame Size: 610 mm (motor-to-motor diagonal distance)
  • Payload Capacity: 10 liters (liquid tank for spraying)
  • Usage: Crop spraying, pest control, fertilizer application, and monitoring



2. ) Flight Performance

  • Maximum Flight Time: 15–25 minutes (depending on payload and weather conditions)
  • Flight Speed: Up to 8 m/s
    Spraying Width: 4–6 meters (depending on nozzle configuration)
  • Spray Flow Rate: Adjustable (1–2.5 liters per minute)
  • Operating Altitude: 1–5 meters (for spraying tasks)



3. ) Drone Structure

  • Propellers: 6 high-efficiency carbon-fiber propellers
  • Frame Material: Lightweight and durable carbon fiber or composite material
  • Weight (Empty): Approximately 9–12 kg
  • Tank Material: High-grade, chemical-resistant plastic



4. ) Battery System

  • Battery Type: High-capacity lithium polymer (LiPo) battery
  • Battery Capacity: 22,000–30,000 mAh
  • Voltage: 12S (44.4V)
  • Charging Time: 1.5–2 hours (fast charging supported)

5. ) Spraying System

  • Tank Capacity: 10 liters
  • Pump Type: Electric diaphragm pump
  • Nozzle Type: Multi-directional atomization nozzles
  • Spray Uniformity: Highly optimized for consistent distribution



6. ) Navigation and Control

  • Control System: GPS + RTK (Real-Time Kinematic) for precision navigation
  • Control Range: Up to 2 km
  • Flight Modes: Manual, Semi-automatic, Fully automatic (waypoint navigation)
  • Obstacle Avoidance: Front & Back sensors



7. ) Additional Features

  • Foldable Arms: Easy for transport and storage
  • Real-Time Monitoring: FPV (First Person View) camera for live video feed
  • Dust and Water Resistance: IP65-rated body for agricultural use
  • Safety Features: Low-battery alarm, return-to-home function, and emergency stop
